STEEL WELD-ON HINGE W/STEEL FIXED PIN & BRASS BUSHING-MARLBORO

  • Category: Weld-On Hinges
  • Brand: Marlboro Manufacturing
Add to Cart Below

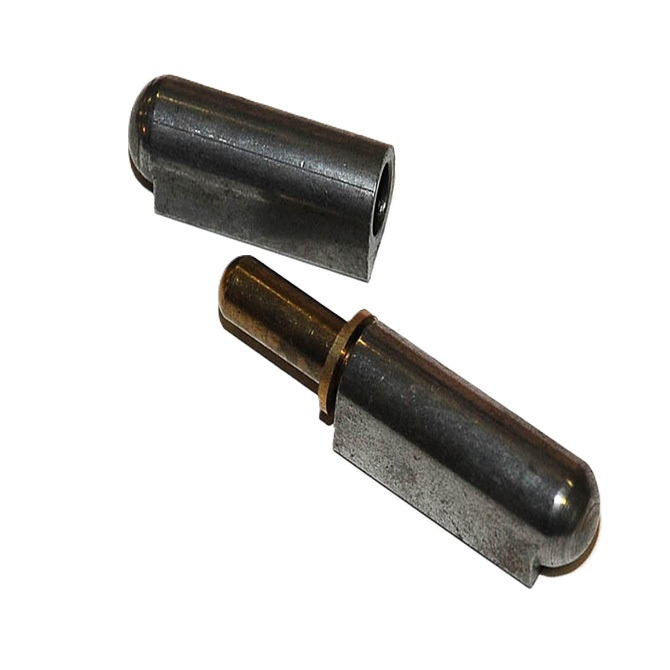

Steel Weld-On Hinge
Weld-On Hinge (also known as a barrel hinge or bullet hinge) constructed from cold rolled steel

Fixed Steel Pin
Brass Bushing

Finish: Natural Steel

Furnished as blank hinge (without holes)
Non-handed
360 degrees range of motion

Provides the same functionality as a slip joint hinge,but with a higher load rating and faster mounting





Steel Weld-On Hinge Options
Lengths: 1.97 in.-10.27 in.
Thickness: .38 in.-1.46 in.
Pin Diameter: .197 in.-.750 in.
Grease Fitting

 Weld-On Hinge Installation

  • Can be welded in place horizontally or vertically.
  • Mount hinge flush, offset, or straight.
  • Weld-on hinges have specially designed leaves for welding installation.
  • Hinges are supplied with a bushing between the two leaves for easier mobility
  • Optional grease fitting for easier mounting.

 Ideal for these Industrial Hinge Applications
The narrow profile of the weld-on hinge provides a secure door connection while allowing it to be easily
removed, making it ideal for tight spaces including:

  • Truck and Trailer hinges
  • Truck Body hinges
  • Agriculture and Farm equipment hinges
  • Electronic Cabinet hinges
  • Toolbox hinges



Options

SKU: Name Length Thickness Pin Diameter Price Quantity Status
MAFSP-80 STEEL WELD-ON HINGE-3.15 IN-W/STEEL FIXED PIN & BRASS BUSHING-MARLBORO 3.15 IN 0.61 IN 0.315 IN $3.74 52 In Stock
MAFSP-100 STEEL WELD-ON HINGE-3.94 IN-W/STEEL FIXED PIN & BRASS BUSHING-MARLBORO 3.94 IN 0.77 IN 0.394 IN $6.18 10 In Stock
MAFSP-200 STEEL WELD-ON HINGE-7.87 IN-W/STEEL FIXED PIN & BRASS BUSHING-MARLBORO 7.87 IN 1.13 IN 0.625 IN $14.22 161 In Stock
MAFSP-070 STEEL WELD-ON HINGE-2.76 IN-W/STEEL FIXED PIN & BRASS BUSHING-MARLBORO 2.76 IN 0.51 IN 0.236 IN $3.74 24 In Stock
MAFSP-260G/F STEEL WELD-ON HINGE-10.27 IN-W/STEEL FIXED PIN & BRASS BUSHING W/GREASE FITTING-MARLBORO 10.27 IN 1.46 IN 0.750 IN $25.03 12 In Stock
MAFSP-260 STEEL WELD-ON HINGE-10.27 IN-W/STEEL FIXED PIN & BRASS BUSHING-MARLBORO 10.27 IN 1.46 IN 0.750 IN $25.03 Out of Stock
MAFSP-180 STEEL WELD-ON HINGE-7.09 IN-W/STEEL FIXED PIN & BRASS BUSHING-MALRBORO 7.09 IN 1.00 IN 0.500 IN $9.96 Out of Stock
MAFSP-050 STEEL WELD-ON HINGE-1.97 IN-W/STEEL FIXED PIN & BRASS BUSHING-MARLBORO 1.97 IN 0.38 IN 0.197 IN $3.27 Out of Stock
MAFSP-080G/F STEEL WELD-ON HINGE-3.15 IN-W/STEEL FIXED PIN & BRASS BUSHING W/GREASE FITTING-MARLBORO 3.15 IN 0.61 IN 0.315 IN $3.74 Out of Stock
MAFSP-060 STEEL WELD-ON HINGE-2.36 IN-W/STEEL FIXED PIN & BRASS BUSHING-MARLBORO 2.36 IN 0.46 IN 0.236 IN $2.64 Out of Stock
MAFSP-120 STEEL WELD-ON HINGE-4.75 IN-W/STEEL FIXED PIN & BRASS BUSHING-MARLBORO 4.75 IN 0.76 IN 0.394 IN $6.10 Out of Stock
MAFSP-135 STEEL WELD-ON HINGE-5.32 IN-W/STEEL FIXED PIN & BRASS BUSHING-MARLBORO 5.32 IN 0.90 IN 0.500 IN $7.47 Out of Stock
MAFSP-135G/F STEEL WELD-ON HINGE-5.32 IN-W/STEEL FIXED PIN & BRASS BUSHING W/GREASE FITTING-MARLBORO 5.32 IN 0.90 IN 0.500 IN $7.92 1 In Stock
MAFSP-150 STEEL WELD-ON HINGE-5.91 IN-W/STEEL FIXED PIN & BRASS BUSHING-MARLBORO 5.91 IN 1.00 IN 0.500 IN $8.44 Out of Stock
MAFSP-150G/F STEEL WELD-ON HINGE-5.91 IN-W/STEEL PIN & BRASS BUSHING-MARLBORO 5.91 IN 1.00 IN 0.500 IN $8.44 Out of Stock
