SPRING LATCH-HEAVY DUTY-3.0 IN LONG-0.50 IN. PIN DIAMETER

  • Category: Spring Latches
  • Brand: Paneloc
Add to Cart Below

Spring Latch Product Description

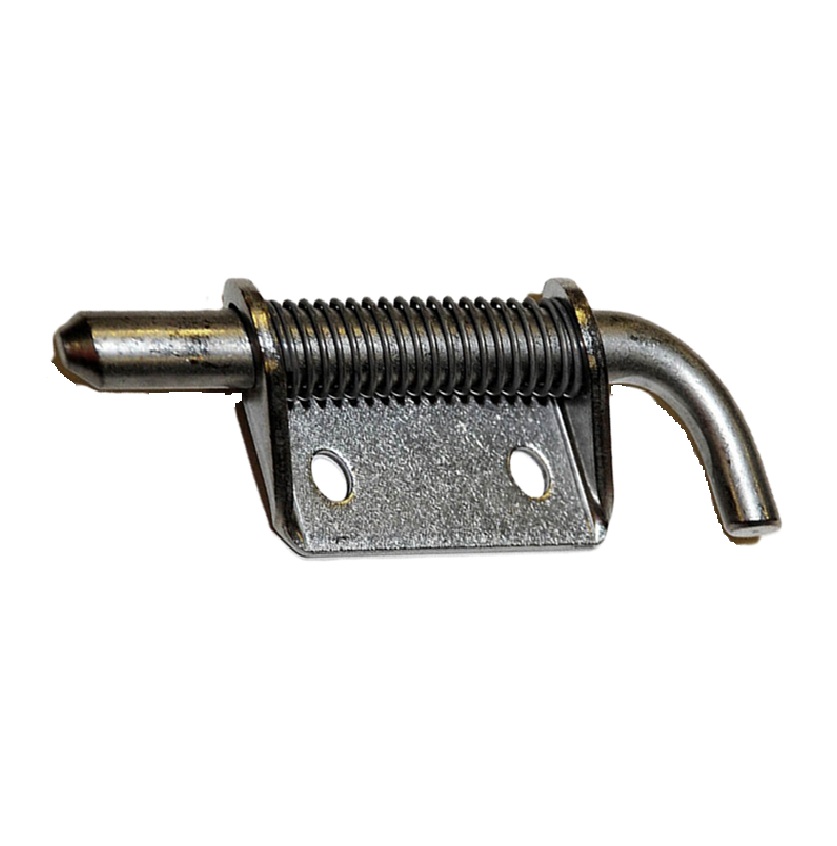

3 inch Spring Latch

Paneloc Heavy Duty Spring Latches are fabricated from
quality materials including stainless steel and cold rolled steel with zinc finish.





Easy Installation
Easy and inexpensive installation can be accomplished using screws, rivets, or by welding.
Latch can be surface-mounted on the inside of door panel or between outer and inner door skins.

 Applications
The spring latch is a reliable and low-cost heavy duty spring latch. The smooth, trouble free action combined with easy access and secure closure make it an ideal spring latch for the following applications:

  • Hinged doors & inspection doors
  • Hinged panels & access panels

The simple barrel bolt fastener has many practical applications including electronic cabinet latches and industrial equipment latches.

Spring Latch Body Specifications
BODY
Length: 3.0 in.
Width: 0.750 in.
Height: 1.250 in.
Thickness: 0.19 in.
H1 Hole Location: 0.500 in.
H2 Hole Location: 0.625 in.
H3 Hole Location: 1.750 in.
* D Hole Diameter: 0.328 in.

Spring Latch Pin Specifications
PIN
P=Pin Diameter:          .500 in.
*E=Extension:            1.500 in.
*R1=Handle Length:  1.218 in.
*R2=Handle Extension: 1.0 in.

Options

SKU: Name Style Finish Latch Feature Price Quantity Status
PA720CLH-HB SPRING LATCH-LEFT HAND-STAINLESS STEEL-W/HOLD BACK-PANELOC Left Hand Stainless w/Hold Back $28.89 188 In Stock
PA720SR SPRING LATCH-RIGHT HAND-STEEL-ZINC FINISH-PANELOC Right Hand Zinc - $14.90 11 In Stock
PA720CL SPRING LATCH-LEFT-HAND-STEEL-ZINC FINISH-PANELOC Left Hand Zinc - $23.48 164 In Stock
PA720CRH-HB SPRING LATCH-RIGHT HAND-STAINLESS STEEL-W/HOLD BACK-PANELOC Right Hand Stainless w/Hold Back $28.89 219 In Stock
PA720CR SPRING LATCH-RIGHT-HAND-STAINLESS STEEL-PANELOC Right Hand Stainless - $23.48 25 In Stock
PA720SL SPRING LATCH-LEFT-HAND-STEEL-ZINC FINISH-PANELOC Left Hand Zinc - $14.90 17 In Stock
