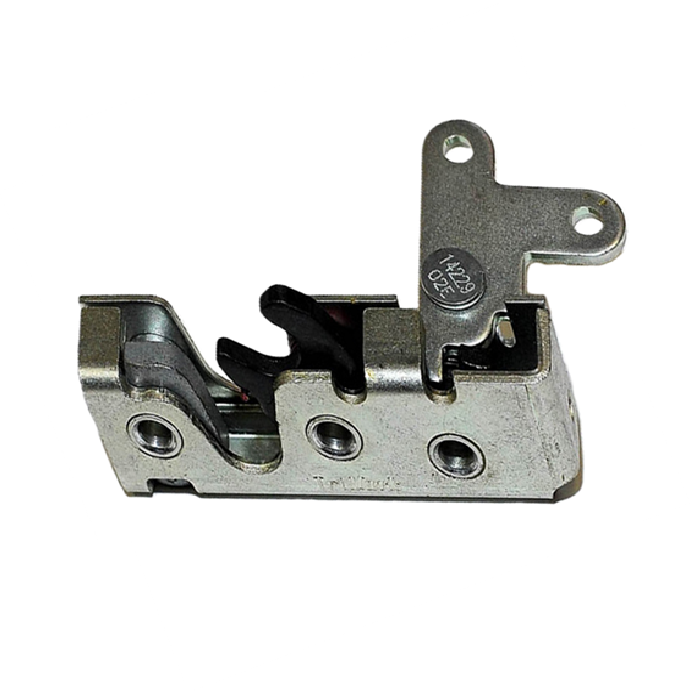

TriMark Slimline Rotary Latch-Single Rotor Latch
Compact light to medium duty single rotor latch
Oven-cured dry lubricant is applied on all critical moving parts
FMVSS 206 compliant
Rotary Latch Options
- Left or Right Hand
- Single or Dual Actuation
Rotary Latch Material
Internal latch components: heat treated, smooth edge stamped steel
Springs: non-corrosive stainless steel
Case halves: high strength steel
Finish
Zinc plated, yellow chromate steel components
Rotary Latch Installation
- Four 1/4-20 UNC grade 5 or M6 x 1 class 8.8 or better fasteners are required (not included).
- Tighten to the fastener manufacturers’ recommended torque value-do NOT exceed 120 in-lbs.
- Fastener mounting hole diameter should not exceed 0.281 in.
Rotary Latch is Ideal for:
- Light to Medium duty application for on or off-highway entrance doors
Compartments and access panels
- Thinner, light or medium weight door applications
- Door weights up to 75 lbs.
- Door seal pressures of 20-25 lbs.-recommended for best results (not to exceed 50 lbs.)
- Visible surface installation or concealed installation
- Applications where it is desirable to have release mechanism in line with the latch
- Applications where it is desirable to have a single position rotor latch
