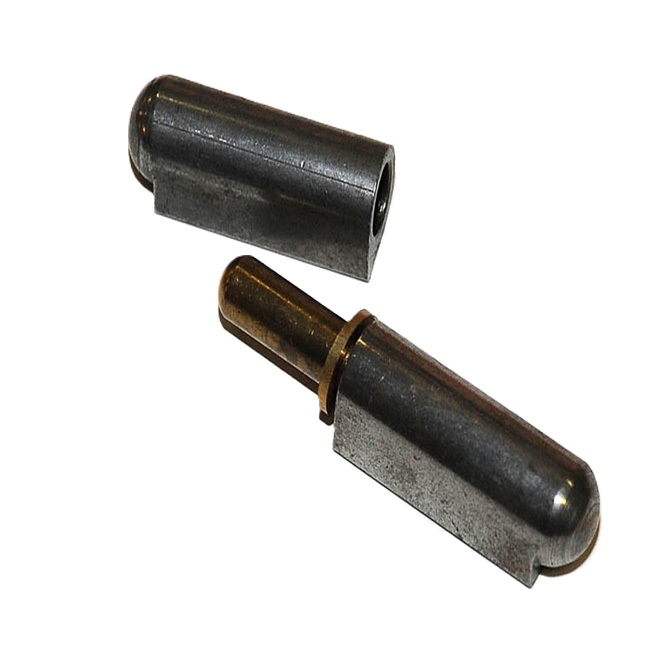

Steel Weld-On Hinge
Weld-On Hinge (also known as a barrel hinge or bullet hinge) constructed from cold rolled steel
Removable Steel Pin
Brass Bushing
Finish: Natural Steel
Furnished as blank hinge (without holes)
Non-handed
360 degrees range of motion
Provides the same functionality as a slip joint hinge, but with a higher load rating and faster mounting
Steel Weld-On Hinge Options
Lengths: 5.91 in., 7.87 in.
Thickness: 1.00, 1.13 in.
Pin Diameter: .500 in.-.625 in.
Grease Fitting
Weld-On Hinge Installation
- Weld-on hinges have specially designed leaves for welding installation.
- Can be welded in place horizontally or vertically.
- Mount hinge flush, offset, or straight.
- Hinges are supplied with a bushing between the two leaves for easier mobility
- Optional grease fitting for easier mounting.
Ideal for these Industrial Hinge Applications
The narrow profile of the weld-on hinge provides a secure door connection while allowing it to be easily removed, making it ideal for tight spaces including:
- Truck and Trailer hinges
- Truck Body hinges
- Agriculture and Farm equipment hinges
- Electronic Cabinet hinges
- Toolbox hinges
- Emergency rescue & fire truck hinges
- Horse trailer hinges
- Locomotive engine hinges
