TRIGGER LATCH-LOCKING-501-KEY-GRIP MAX. 0.84 IN.-EBERHARD

  • SKU: EB534XKCHR
  • Category: Trigger Latches
  • Brand: Eberhard
    21.02
  • $21.02
Out of Stock

Locking Trigger Latch-Chrome Plated Keyed CH501
Locking push button trigger latch chrome plated die cast zinc
Single point compression latch
Trigger latch has dust shutter on key cylinder to help reduce dirt from entering cylinder
Adjustable grip range is 0.13 inch minimum to a maximum of 0.84 inches

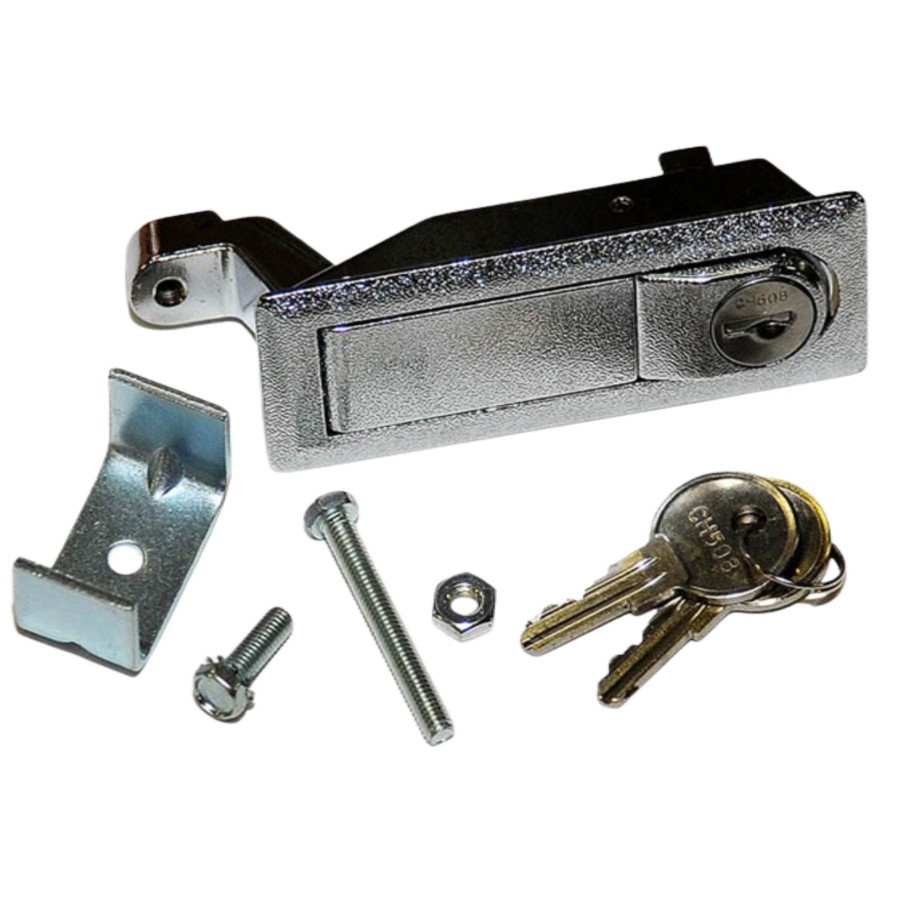

Locking trigger latch comes with
:

  • Single key
  • Adjustable screw
  • Mounting bracket
  • Mounting screw
  • Adjustment bolt both with hex heads for faster installation


Ideal for these locking trigger latch applications:

  • Compartment door latches
  • Cabinet door latches
  • Marine latches / Boat compartment latches
  • Work truck compartment door latches
  • Bus baggage compartment latches


Locking Trigger Latch Specifications
Keyed CH501
Material: Zinc die cast
Finish:  Chrome plated
Overall length: 4.11 in.
Width: 1.0 in.
Grip Range 0.13 in. to 0.84 in.
