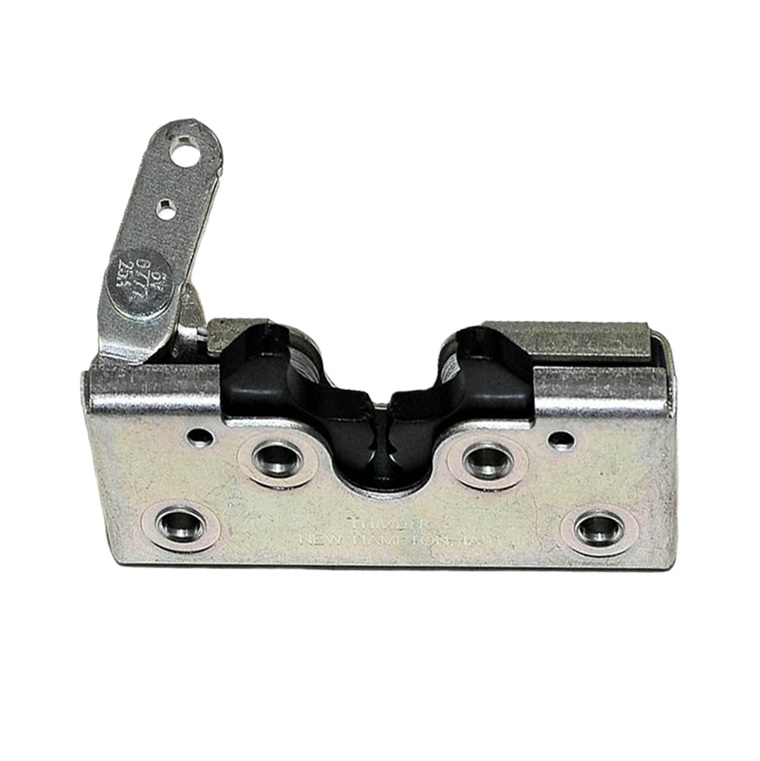

TriMark Rotary Latch-Two Rotor Latch
-Medium to Heavy Duty Rotary Latch
-Features a variety of trip lever and mounting axles for ease of mounting
-Oven-cured dry lubricant is applied at factory on all critical moving parts
FMVSS 206 compliant
Two position, double rotor latches comply with FMVSS 206 in primary and secondary latching positions when tested
ONLY complaint with approved TriMark FMVSS 206 compliant striker boltsin accordance with SAE J839
Rotary Latch Options
- Left or Right Hand
- Trip Lever options
- Straddle Mount
Rotary Latch Material
Internal latch components: heat treated, smooth edge stamped steel
Case halves: high strength steel
Springs: non-corrosive stainless steel
Finish:
Zinc plated, yellow chromate steel components
Rotary Latch Installation
- Tighten to the fastener manufacturers’ recommended torque value;do not exceed 120 in-lbs
- Fastener mounting hole diameter should not exceed 0.281 in
Dual Stage Rotary Latch is Ideal for:
- Medium to heavy-duty applications for on or off-highway entrance doors.
- Compartment and access panel with:
- Door thicknesses of 1-7/8 in. or greater
- Door weights of 50-200 lbs.
- Door seal pressures of 50-150 lbs. (suggested for best results)
