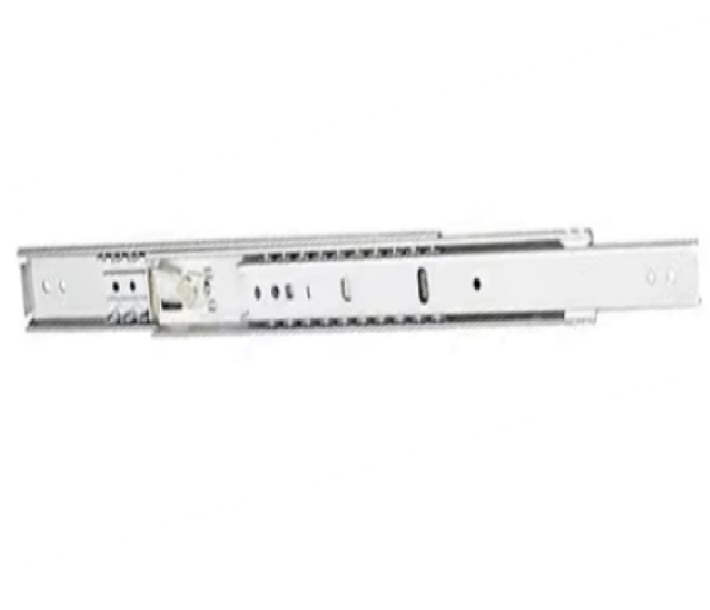

Accuride 305-A18-LR 18 Inch Lock Out Industrial Drawer Slide
Accuride 305A-A-18-LR 18 inch drawer slides are medium duty, positive lock-out drawer slides with over travel and front disconnect.
Use model 305A-LR whenever recessed mounting and positive lock-out is required.
Precision ball bearing industrial drawer slides ideal for medium loads up to 100 lb. capacity.
The Accuride 18 inch medium duty lock out drawer slide with front disconnect is designed for use in medium-duty industrial drawers, trays or electronic enclosures for applications up to 100 lbs. including:
- EIA rack-mount chassis drawer slides
- Power supply drawer slides
- Disc/Tape drive drawer slides
- Industrial work station drawer slides
- Dispensing equipment drawer slides
PRICE IS PER PAIR
Requires #8 pan head screws-NOT INCLUDED
Optional bracket kit available for electronic enclosure mounting
RoHS Compliant
Accuride 305-A18-LR 18 Inch Lock Out Industrial Drawer Slide Specifications
- 18 Inch Drawer Slide
- Up to 100 LBS load capacity
- Height 1.38 in.
- 0.88 inch over travel
- Side, bracket or hard mounting
- 0.75 inch side space
- Positive lock-out with front disconnect
- Clear zinc finish
Special Features
- Lock-out holds drawers in open position for access
- Optional bracket kit available for electronic enclosure mounting
- Mounting brackets allow recessed mounting behind cabinet rails,
decreasing side space requirements to 0.39 in.
