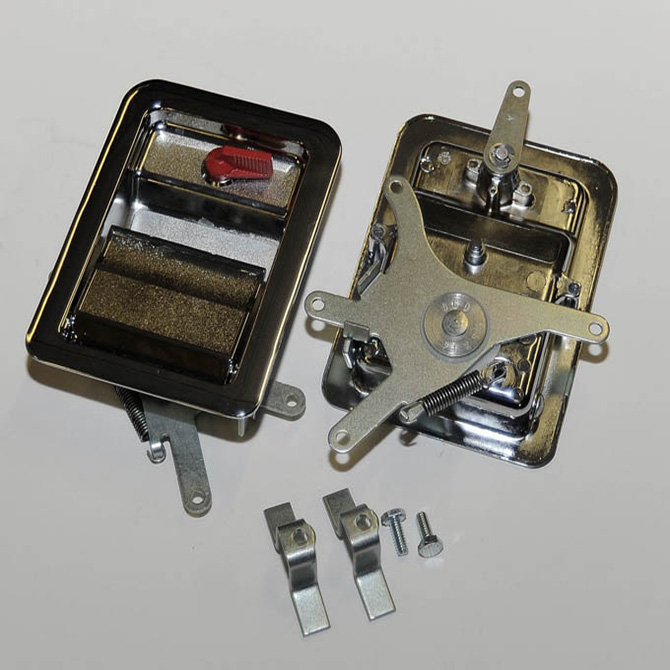

TriMark Locking Paddle Handle with Inside Release Lever-Right Hand
Inside release lever eliminates much of the linkage typically required with conventional inside handles
Operator can exit even if the door is locked from the outside
Optional pivot plates available for your particular application
Nylon paddle axle bushing and pivot plate thrust washers
Pivot Plate: 4-Point, 0.265 (6.7mm) Diameter
Paddle Handle Material
Housing and paddle: die cast zinc alloy
Pivot components: zinc plated, mild steel Bushing for paddle axle
Thrust washers for pivot plate: 6-6 nylon
Finish: Black powder coated,Chrome plated
Paddle Handle Installation
Left hand paddle handle can be installed in a wide range of locations in door--either horizontal or vertical orientation.
Requires four (4) 10-24 UNC or M5 x .8 mounting screws (not included)
ONLY Complies with FMVSS when used in conjunction with 030-0850 Flush Mounted Paddle Handle and approved latching mechanisms.
Right Hand Paddle Handle Applications
· Off-highway vehicle applications - construction, mining, agricultural, forestry
· Doors requiring latch location remote from activating handle
· Door thickness of 2" (50.8mm) or greater
