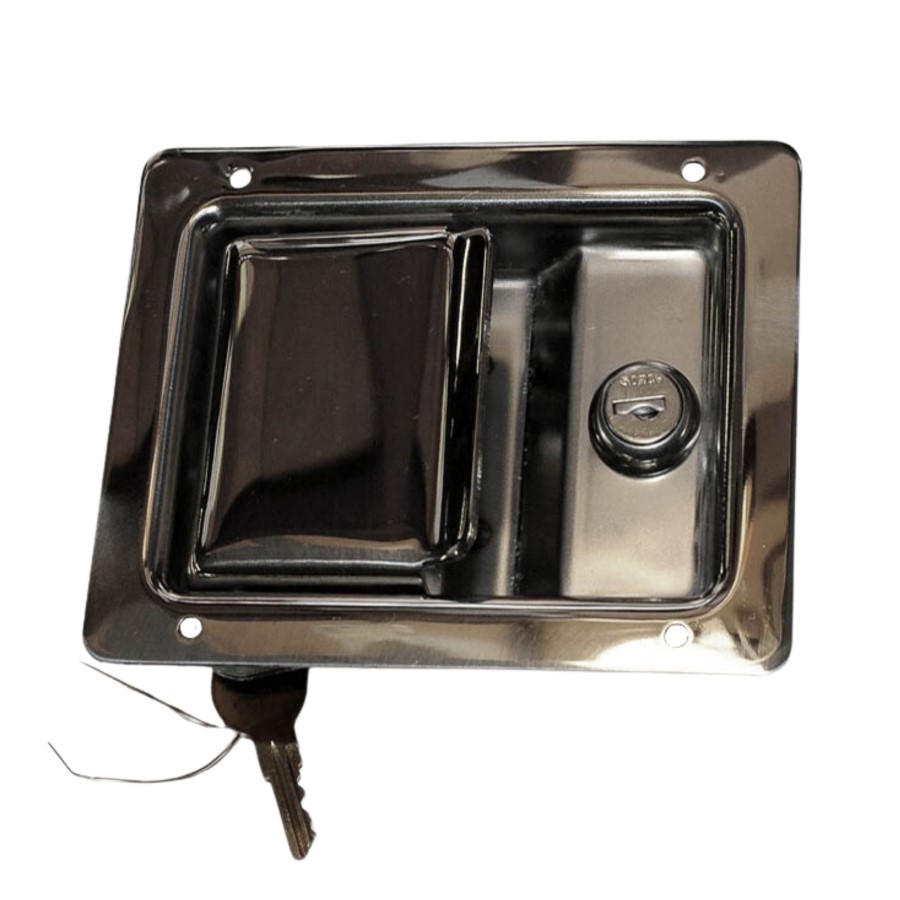

Locking Stainless Steel Paddle Handle Latch
Eberhard 25C-4974-SS51-10
Smooth-acting stainless steel paddle latch is especially suited for installation in tight quarters with a thickness of only 1-9/16 in.
Includes (4) four mounting holes
Paddle latch is supplied with rods, which connect to the end bolts
It can also be adapted for use with cable to provide greater flexibility in application or rotaries for more secure fit.
Key-Locking, Keyed CH501
Latch ships with one key
Paddle Handle Latch Installation
The recessed pan permits flush installation: simply cut an appropriate hole and attach by screws, bolts or welding.
Furnished with four (4) 11/64 in. diameter mounting holes in center case on 3-11/16 in. x 3-3/4 in. centers.
Paddle Handle Latch Applications
This cable-controlled paddle handle latch is intended for use on all types of compartment doors including:
- Farm and Agricultural equipment enclosure paddle handles
- Stationary equipment enclosure paddle handles
- Machine tool cabinets paddle handles
