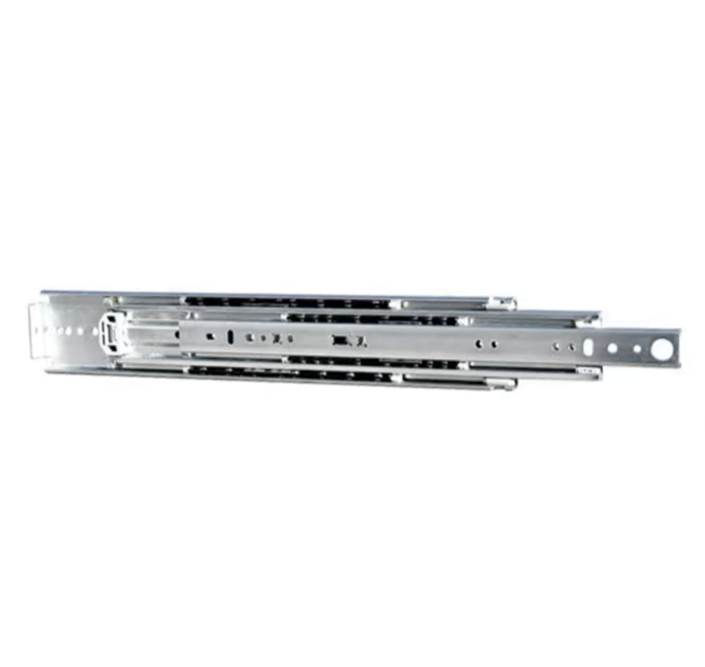

Accuride 9301 16-Inch Heavy Duty Industrial Drawer Slides
Accuride 16 inch horizontal drawer slides are heavy duty, precision ball bearing full extension industrial drawer slides for heavy loads up to 500 lb. capacity.
The Accuride 16 inch heavy duty industrial drawer slide is a versatile slide designed for use in a variety of heavy duty storage applications including:
- Computer server storage access
- Electronic instrumentation chassis
- Heavy duty storage drawers
- Commercial kitchens-large pantry pull-outs
- Toolboxes
- Service truck tool drawers
- Flight status monitor cabinets
PRICE IS PER PAIR
Screws not included
Optional platform bracket kit allows for additional bottom and side mount applications
RoHS Compliant
Accuride 9301 16 Inch Full Extension Heavy Duty Drawer Slide Specifications
- 16 inch Heavy Duty Horizontal Drawer Slide
- Up to 500 LBS
- Height 3 in.
- Full Extension
- 0.75 inch side space
- Non-disconnect
- Tested drawer width 16 in.
- Even lengths 16 in.
- Clear zinc electroplate finish
Special Features
Accuride drawer slide 9301 may be installed as a companion slide with drawer slide 9308 (lock-in and lock-out, actuated with a front latch).
Optional platform bracket kit allows for additional bottom and side mount applications
