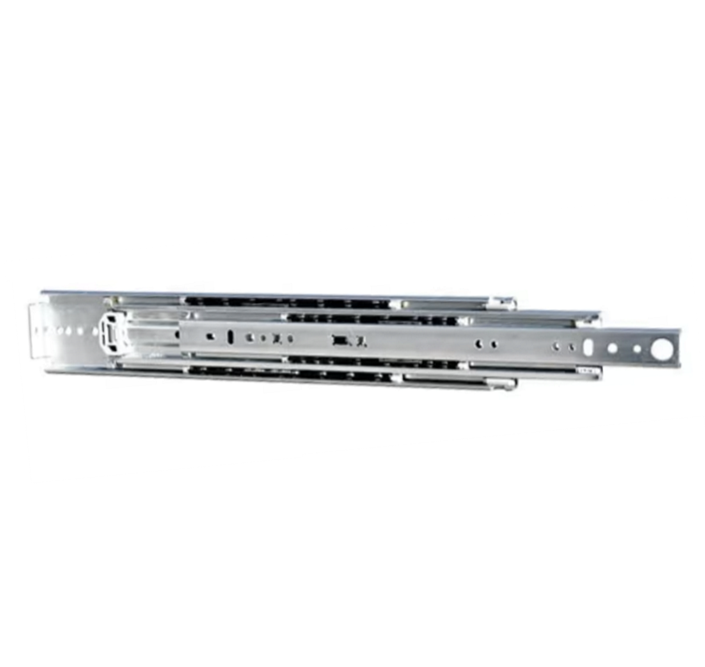

Accuride 9301 14-Inch Heavy Duty Industrial Drawer Slides
Accuride 14 inch horizontal drawer slides are heavy duty, precision ball bearing full extension industrial drawer slides for heavy loads up to 500 lb. capacity.
The Accuride 9301 heavy duty industrial drawer slide is a versatile slide designed for use in a variety of heavy duty storage applications including:
- Computer server storage access
- Electronic instrumentation chassis
- Heavy duty storage drawers
- Commercial kitchens-large pantry pull-outs
- Toolboxes
- Service truck tool drawers
- Flight status monitor cabinets
PRICE IS PER PAIR
Screws not included
Side Mount
RoHS Compliant
Accuride 9301 14 Inch Full Extension Heavy Duty Drawer Slide Specifications
- 14 Inch Heavy Duty Horizontal Drawer Slide
- Up to 500 LBS
- Height 3 in.
- Full Extension
- Side Mount
- 0.75 inch side space
- Non-disconnect
- Tested drawer width 14 in.
- Even lengths 14 in.
- Bright electro-zinc plated finish
Special Features
Accuride Model 9301 may be installed as a companion slide with Model 9308 (lock-in and lock-out, actuated with a front latch).
Accuride Drawer Slide 9308 accessory bracket kits offer bottom mount installation options;
