Eberhard Eclipse Series - Lift and Turn Latch 830 Series

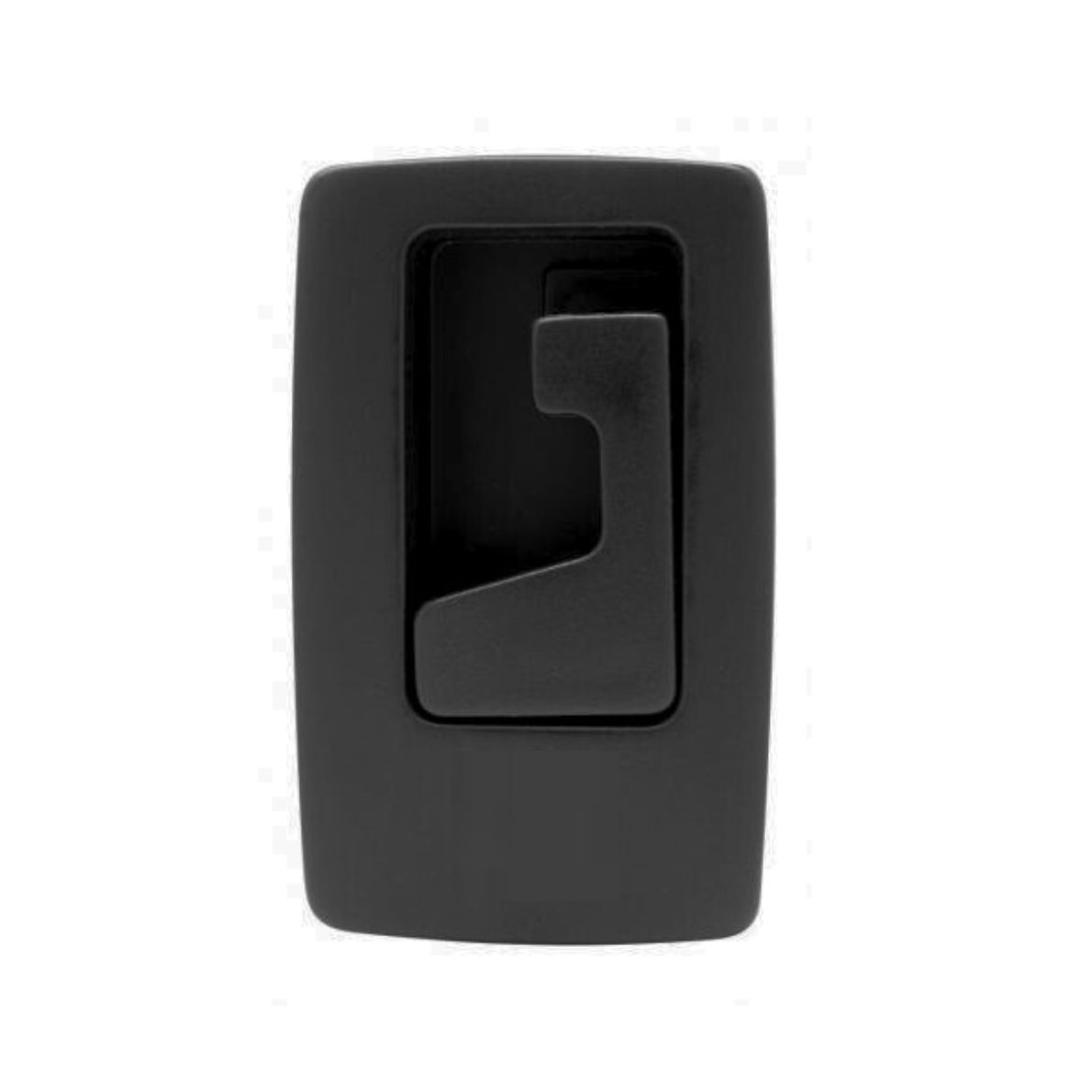

Eberhard 830 Series Eclipse Latch
Non-Locking compression latch
830 Series Latch Materials
The lift & turn housing and handle are made of thermoplastic alloy
A polycarbonate-based polymer blend provides high strength, low weight with excellent heat and chemical resistance
Polymer blend materials also resists crazing and hardening
All metal stamping is made of 300 Series Stainless Steel
Easy Installation
- Installation is fast with the use of the blind mount bracket and (2)screws, which are provided.
- Oil-resistant flange gasket provided.
- Torque mounting bracket screws to 14 ± 3 in./lbs.
- No external fasteners needed.
- No weld marks to mar finish.
- Eclipse latches can be assembled on finished panels.
Eclipse 830 Series Non-Locking Latch is ideal for:
Latches for use in applications when temperature, noise or vibration are important considerations
Latch Features
Rubber grommet which swells into a doughnut shape when the handle is folded into the recessed housing.
In the compressed state, the grommet is larger than the hole in the strike effectively “locking” the panel.
When the handle is lifted the grommet relaxes, allowing it to pass through the strike hole.
