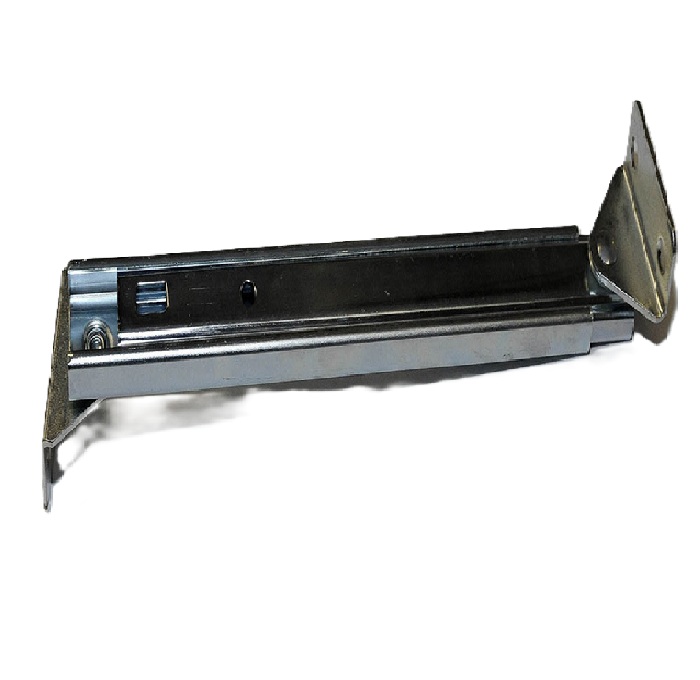

12 Inch Telescoping Door and Lid Prop
12 inch telescopic door and lid prop constructed from 16 gauge steel with zinc plating.
Door prop is 10.75 in closed to 19.25 in. open.
12 Inch Door and Lid Prop Features
Special nylon washers at each flange's pivot point provide smooth, taut operation.
Safety pin holes prevent accidental unlatching while in the latched position.
Automatic cam lock locks which locks automatically when open, unlocks easily when extended slightly in up position.
12 Inch Telescoping Door and Lid Prop Specifications
- Door prop-10.75 in. closed to 19.25 in. open
- Flanges: width 2.25 in. height, outer slide 1.4 in.
- Hole diameter: 0.343 in.
- Note: requires 63 in. over travel for latching and unlatching
These door and lid props have been tested by the University of Notre Dame for strength.
For use on various door and lid prop applications including:
- Cabinet door props
- Storage container lid props
- Utility box lid prop
- Engine cowling support
- Body compartment door supports
- Concession trailer awning door prop
- Window supports
- Shelf supports
