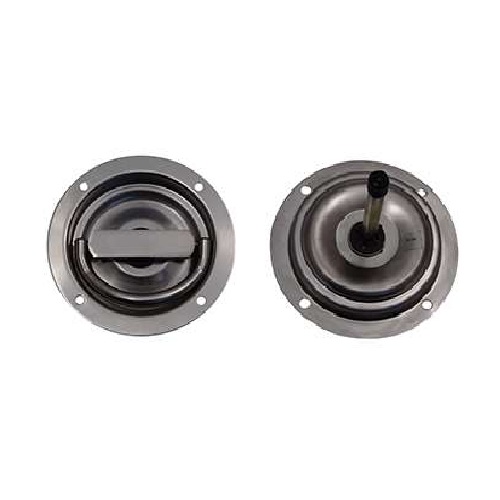

Large Non-Locking D-Ring Handle
Flush-mounted large non-locking stainless steel D-ring handle with center rotating shank
Large size square shank-5/16 inch shank diameter
For use with A.L. Hansen Rotary Lock (Part No. HA459ZC) and Eberhard Slam Latches (Part No. EB3-206U45)
Comes with two keys

Large Non-Locking D-Ring Handle Installation
Four (4) 7/32 in. diameter mounting holes standard

Sold as EACH

These large non-locking D-ring handles are ideal for fire truck/rescue vehicle applications where easy access and a bright modern appearance are required.

Additional Large Non-Locking D-ring Handle Applications Include:

• Service body D-ring handles
• Tow truck D-ring handles
• Generator enclosure D-ring handles
• Van body D-ring handles
• Electrical enclosure D-ring handles

Large Non-Locking D-Ring Handle Specifications
Cold Rolled Steel D-Ring Handle
Finish: Bright Polished Stainless Steel
Shank Length: 3 in.
Shank Diameter: 5/16 in.
Cut Out: 4-5/8 in. diameter
