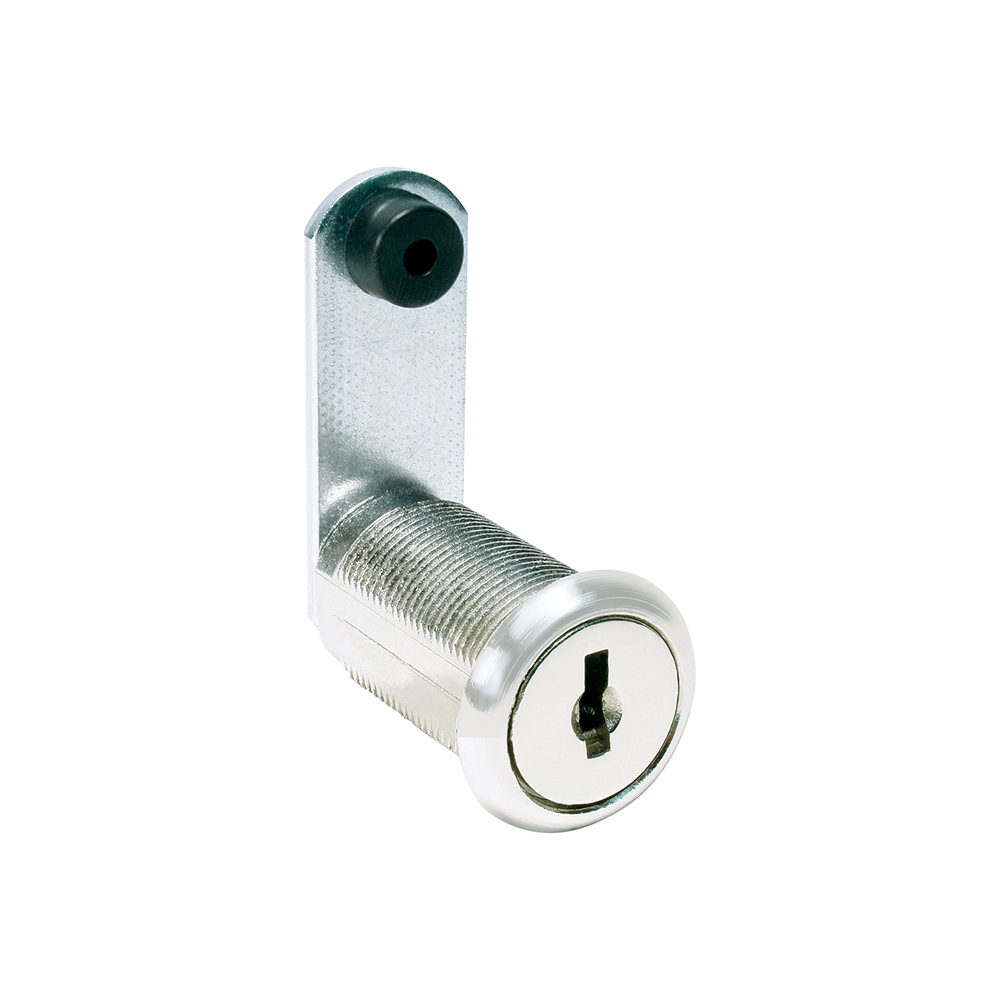

Disc Tumbler Cam Lock-15/16 Inch Lock Cylinder-415A Key
15/16 inch cylinder cam lock
Nickel plated
Keyed alike with 415A key, 90 degree cam turn
Cam Lock supplied with 1-1/2 in. straight cam and 1-1/8 in. offset cam (11/32 in. offset)
Keying-Will key together with all other disc tumbler locks using D8783 key blank

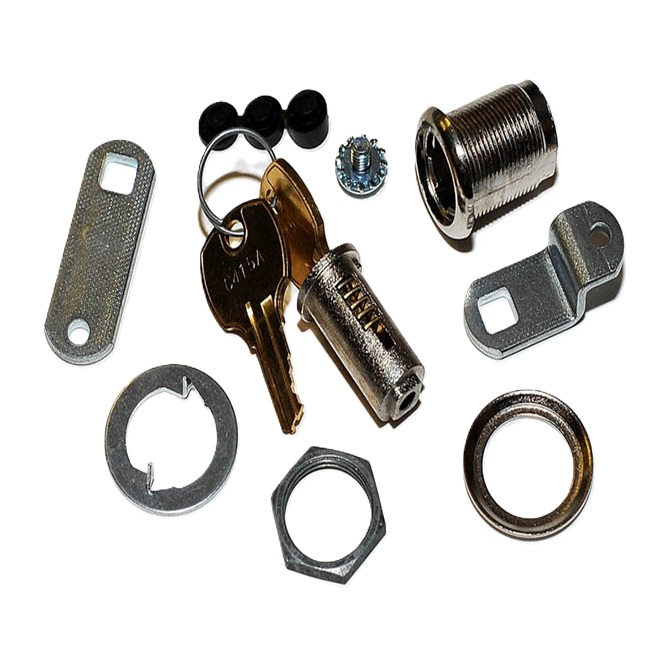

Each disc cam lock includes:

• One cylinder cam lock and two cams
• Two brass keys and ring
• Straight cam: 1-1/2 in. long
• Offset cam: 1-1/8 in. long
• Trim washer, mounting nut and lock washer for wood installation

These disc tumbler lock cam locks are ideal replacement lock cylinders for drawers, right hand or left hand doors with lipped/overlay construction (straight cam) or flush construction (formed cam).

Other cam lock applications include:

• Filing cabinet locks
• Industrial cabinet locks
• Office cubicle locks

NOTE: For overlay door applications, the combined thickness of front and frame cannot exceed the 15/16 inch cylinder length.

15/16 inch Disc Tumbler Lock Cylinder Cam Lock Specifications

• Locking radius 90 degree
• Cam Lock Operation- 90 degree cam turn on all locks, key removable in both locked and unlocked position
• Material thickness 5/8 in.
• Bright nickel finish
