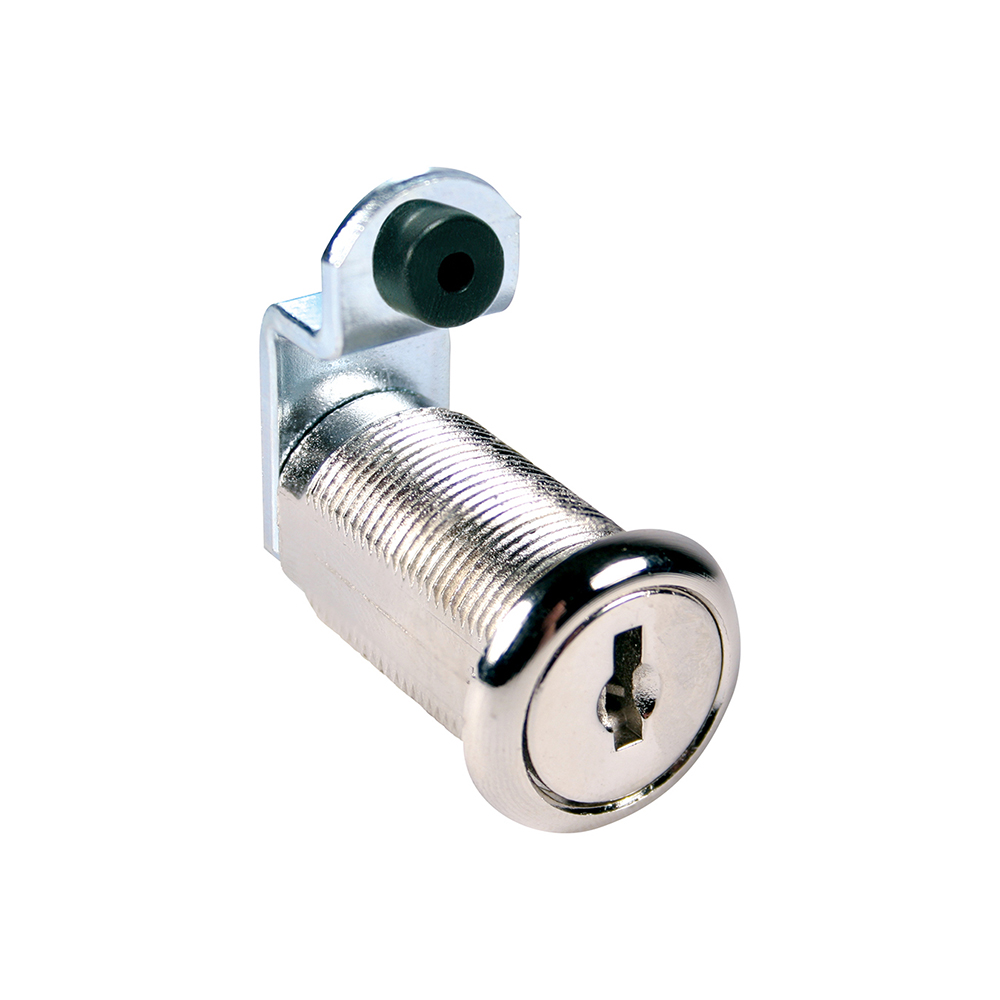

Disc Tumbler Cylinder Cam Lock-1 7/16 Inch Lock Cylinder-415A Key
1 7/16 inch cylinder cam lock-nickel plated
Keyed alike with 413A key, 90 degree cam turn.
Cam Lock supplied with 1-1/2 in. straight cam and 1-1/8 in. offset cam (11/32 in. offset)
Keying-Will key together with all other disc tumbler locks using D8783 key blank

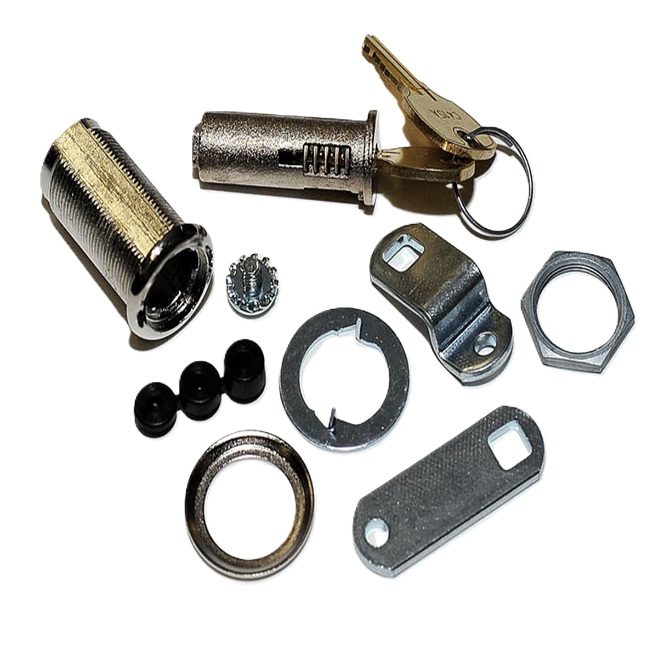

Each disc cam lock includes:

• One cam lock cylinder and two cams
• Two brass keys and ring
• Straight cam: 1-1/2 in. long
• Offset cam: 1-1/8 in. long
• Trim washer, mounting nut and lock washer for wood installation

These dsc tumbler cylinder cam locks are ideal replacement lock cylinders for drawers, right hand or left hand doors with lipped/overlay construction (straight cam) or flush construction (formed cam). Other cam lock applications include:

• Filing cabinet locks
• Industrial cabinet locks
• Office cubicle locks

NOTE: For overlay door applications, the combined thickness of front and frame cannot exceed the 1 3/16 inch cylinder length.

1-7/16 inch Disc Tumbler Cylinder Cam Lock Specifications

• Locking radius 90 degree
• Cam Lock Operation- 90 degree cam turn on all locks, key removable in both locked and unlocked position
• Number of pins: 5
• For material thickness 7/8 in.
• Bright nickel finish
